Portfolio.

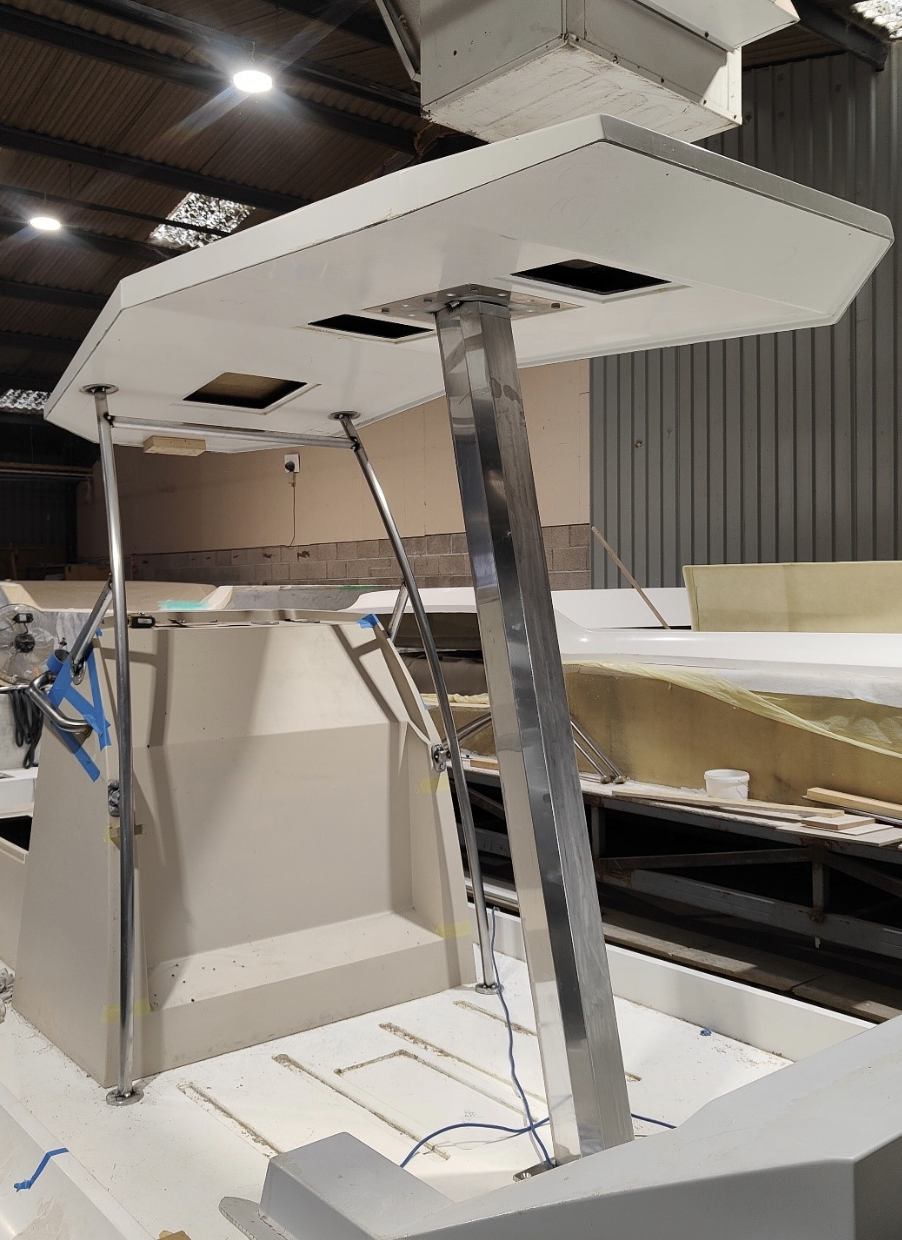

Canopy post made in two half and bent from 3mm sheet with 10mm top and bottom plates. Front grab rails Rolled and notched and tacked together on the boat for the correct fit.
Canopy post made in two half and bent from 3mm sheet with 10mm top and bottom plates. Front grab rails Rolled and notched and tacked together on the boat for the correct fit.
Finished boat with canopy and grabrails finished in black powder coat.
Finished boat with canopy and grabrails finished in black powder coat.
Yachts Navigation computer support and guard rail with compass bracket. Situated in front of the helm of a yacht. The frame is made for a stranded navigation housing and shaped to suit. The original stainless-steel bracket only had the compass bracket. You can see in the photo where the new stainless frame meets the old to accommodate the new navigation system for the yacht.
Yachts Navigation computer support and guard rail with compass bracket. Situated in front of the helm of a yacht. The frame is made for a stranded navigation housing and shaped to suit. The original stainless-steel bracket only had the compass bracket. You can see in the photo where the new stainless frame meets the old to accommodate the new navigation system for the yacht.
20mm thick stainless AFT mast Chainplates for a 50ft sailing yacht. Finished with a mirror polish. Laser cut interlocking parts with holes counter sunk for M20 fixings.
Mid ship Rigging chainplates fabricated from 20mm and 15mm thick stainless steel. Laser cut interlocking parts with holes then welded and finished with a mirror polish.
Bow plate. Shaped and fabricated to customers boat with a slot to let the anchor pass though.
Nav light and ski pole. The ski pole bolts to a second thicker tube that passes through the transom to the bottom of the boat for a strong anchor point.

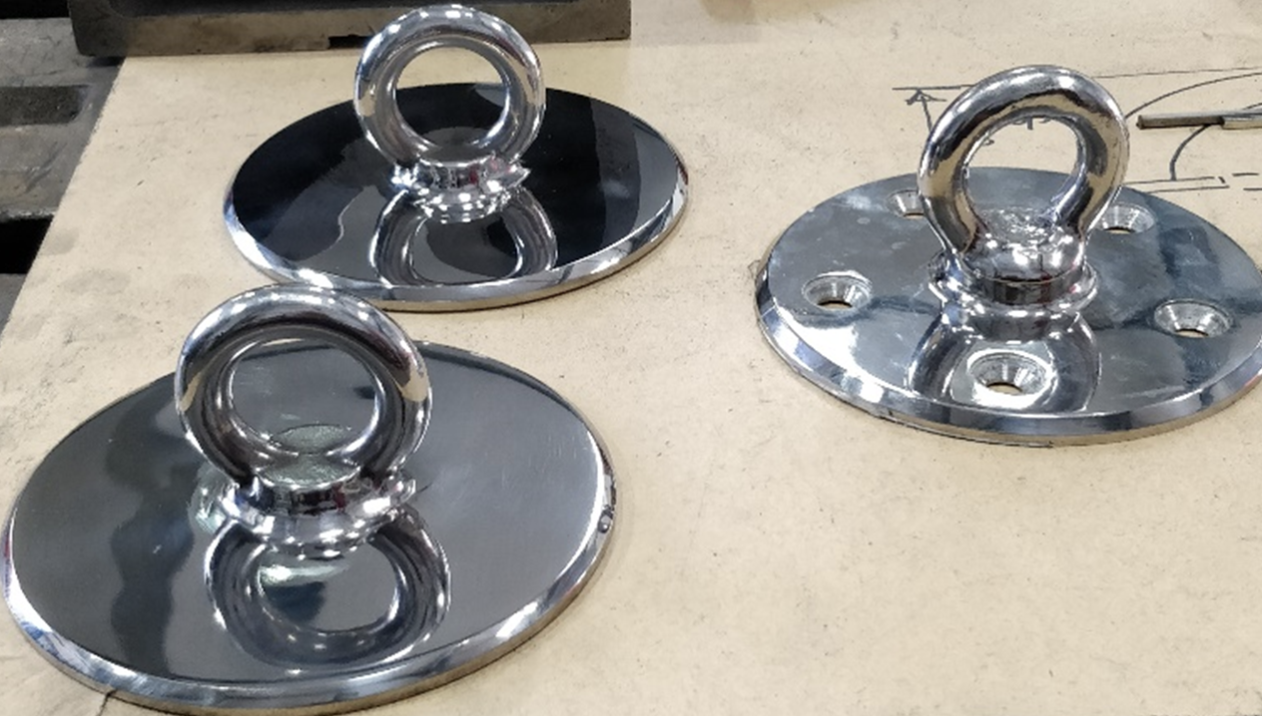

Replicated Rib tow eyes (original is with the holes). Laser cut parts mirror polished then tow eyes welded on, the weld where then polished out for a neat finish. Parts where drilled and countersunk later.
Boat grab rail. Made from oval and 1”1/4 stainless tube. Finished with mirror polish. Fitted to a 10m Rib.
Boat Nav computer housing. Made from 3mm stainless steel with two flanged inlets for electrics.
Aluminum Mast made for a fast rib tender.
Aluminum Mast made from 4mm laser cut parts and 3” and 1”1/4 tube.
Finished Aluminium Boat Mast with electronics. Finished in white powder coat.
Twin fuel tanks for Rib tender. Made to customers design and tested with compressed air to the pressure specified by the customer.
Twin fuel tanks for Rib tender. Made to customers design and tested with compressed air to the pressure specified by the customer.
Twin fuel tanks for Rib tender. Made to customers design and tested with compressed air to the pressure specified by the customer.
Pull bar and wall brackets. Made from mild steel out of 10mm laser cut parts with 10m spigot and split pin for easy removal of the bar.
Pull bar and wall brackets. Made from mild steel out of 10mm laser cut parts with 10m spigot and split pin for easy removal of the bar.
Frame bending and forming for bespoke fabrications.
Repair leaking Aluminium bike fuel tank. Removed old leaking weld and replaced with a clean tig weld.
Original Tank before modification
Filled and primed.
Welded ready for finishing.
Tank cut to widened.
Original Tank before modification
Original Tank before modification
Marked for cutting.
Final Result.

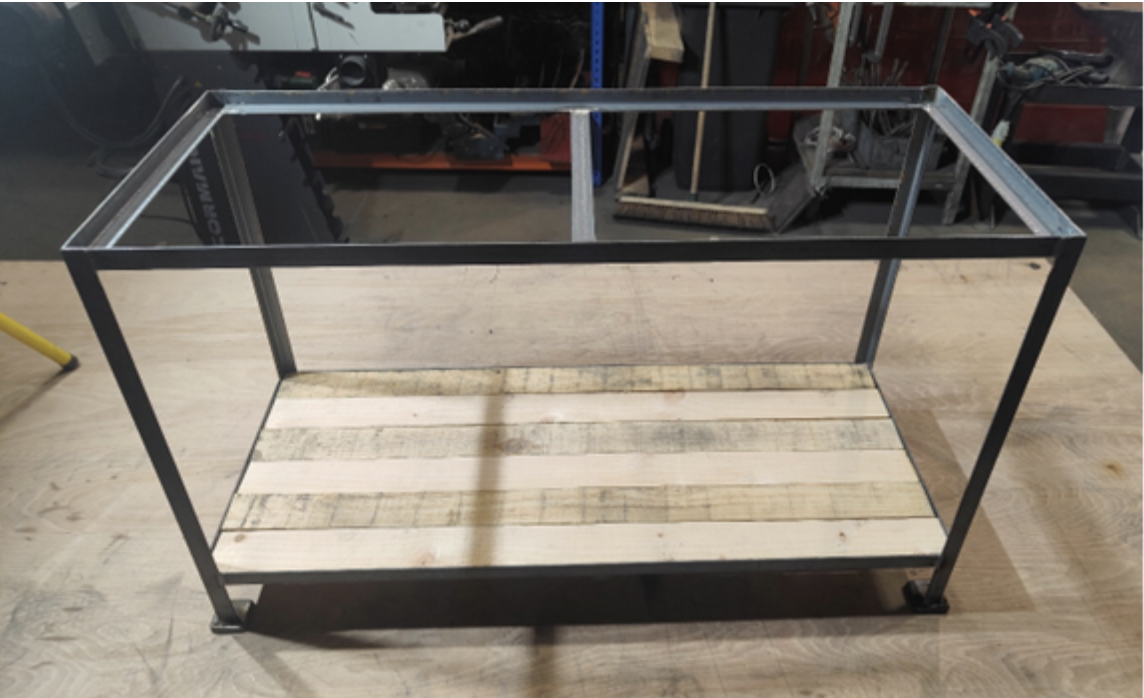

Fish tank stand or bespoke furniture. Made from 25x25x3mm mild steel angle. Finished with a pallet wood shelf.
Fish tank stand or bespoke furniture. Made from 25x25x3mm mild steel angle. Finished with a pallet wood shelf.
Fish tank stand or bespoke furniture. Made from 25x25x3mm mild steel angle. Finished with a pallet wood shelf.
